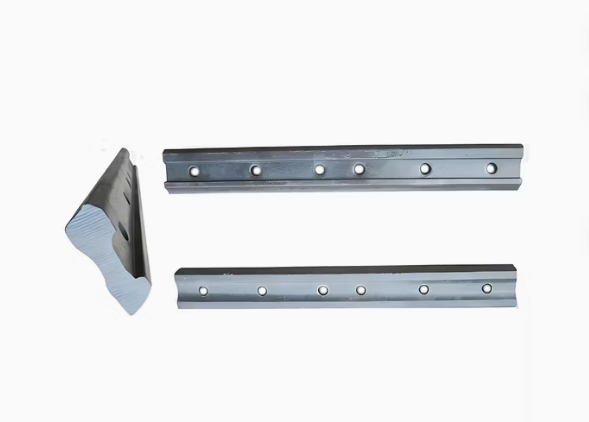

UIC Standard Railway Parts & Accessories High-Strength Fishplates

  • UIC Standard Railway Parts & Accessories High-Strength Fishplates
  • UIC Standard Railway Parts & Accessories High-Strength Fishplates
  • UIC Standard Railway Parts & Accessories High-Strength Fishplates
Luogo di origine Cina
Marca Kingrail
Certificazione CB, CE, EMC, RoHS SABER
Numero di modello UIC
Quantità di ordine minimo Negoziabile
Prezzo negotiable
Imballaggi particolari pacchetto di esportazione standard o secondo la richiesta del cliente
Tempi di consegna 1-30 giorni lavorativi
Termini di pagamento L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di alimentazione 1800000 tonnellate all'anno

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Resistenza alla corrosione Forte Compatibilità Si adatta a binari di varie dimensioni
Standard Uic, Arema, ASTM, BS, Tb Peso Varia a seconda delle dimensioni
Metodo di installazione Imbullonato Buco 4, 6 fori
Colore Argento Misurare Standard
Applicazione Collegamento della linea ferroviaria Materiale Acciaio
Utilizzo Permanente Articolo Corridoio ferroviario in acciaio al carbonio
Forma a forma di speciale Tipo Barra congiunta
Durabilità Alto
Lasciate un messaggio
Descrizione di prodotto
Basic Information
Certification
ISO9001
Type
Rail Joint
Standard
Uic864-4 & Uic864-8
Material
Chinese Steel Grade 40#
Size(Kg)
U79-Uic54,U85-Uic60
Tensile Strength RM
550-650MPa
Elongation a
≥18%
Transport Package
Carton Packing
Specification
Customized
Trademark
XRD
Origin
Chongqing China
HS Code
7302400000
Production Capacity
10000000
Product Description

Rail Joints, also called railway fish plate or joint bar, splice bar, is a metal joints bar connected to the ends of two rails to bond them together. A quality rail joint bar can largely reduce the impact of wheels to the jointing sections of the rail tracks and increase the continuity and steadiness of the train when passing through the jointing sections. This rail components is a guarantee to railroad transportation safety no matter it's light or heavy.

Standard UIC864-4 & UIC864-8
Material Chinese Steel Grade 40#
Size(kg) U79-UIC54,U85-UIC60
Tensile Strength Rm 550-650Mpa
Elongation A ≥18%
Product Advantage
  • Good Raw Material: Strictly control the production standard to control the error within the tolerable range of uniform force.
  • Careful Workmanship: Strict selection of materials, raw materials layer by layer screening each time is the source of on-site selection of fine forging.
  • Various Specifications: Products can be customized according to customer engineering needs, fast proofing and timely delivery.
